Product Details
Place of Origin: Weifang, China
Brand Name: Kailong Machinery
Certification: ISO9001
Model Number: 900*850*250/250
Payment & Shipping Terms
Minimum Order Quantity: 10 Sets
Price: $800.00 - $10,000.00
Packaging Details: Exporting packaging
Delivery Time: 40-60 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 600 sets/per month
Material: |
GG25 /GGG50/Welding Steels |
Technology: |
Resin Sand Process |
Pattern: |
Wooden Pattern |
Machining: |
CNC Machining Center |
Applications: |
Automatic Moulding Line |
Surface Treatment: |
Spray Painting |
Sizes: |
As Drawing's |
Colors: |
As Customer's Requirement |
HS Code: |
84801000.00 |
Material: |
GG25 /GGG50/Welding Steels |
Technology: |
Resin Sand Process |
Pattern: |
Wooden Pattern |
Machining: |
CNC Machining Center |
Applications: |
Automatic Moulding Line |
Surface Treatment: |
Spray Painting |
Sizes: |
As Drawing's |
Colors: |
As Customer's Requirement |
HS Code: |
84801000.00 |
High Precision Casting Moulding box

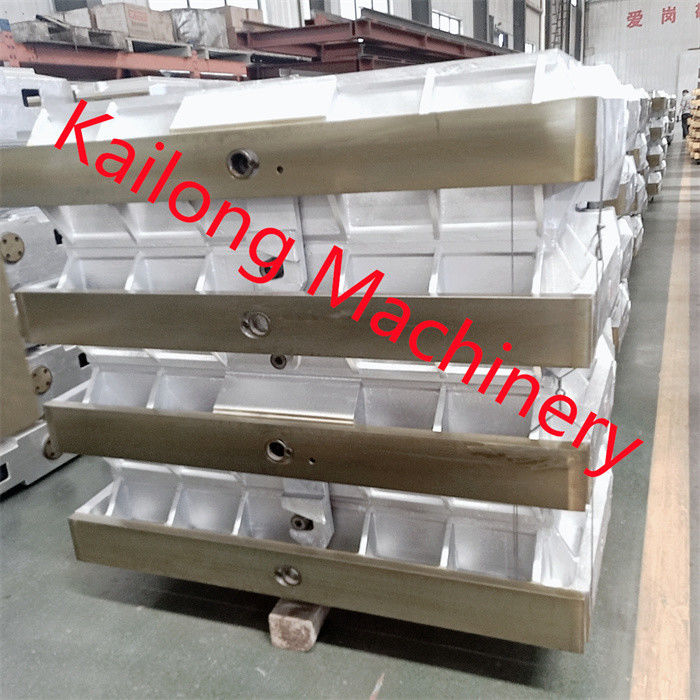

Foundry Moulding Box(Cope& Drag) Grey Iron GG25 For HWS Automatic Molding Line
Product Description:
Moulding box also named moulding flask, mold flask, sand flask, sand box, which is important tools for foundries using automatic or demi-automatic moulding line. Machined by advanced CNC machines and dimensions controlled by CMM, our products achieve higher accuracy and better interchangeability. The flasks are manufactured with ductile iron, higher grade gray iron, or steel welding, and they have higher rigidity and can bear higher pressure impact. In addition, we design and manufacture different sizes of customer drawing and technical specification.
In order to prevent wear of positioning hole and prolong the service life of sand box, the positioning hole of casting sand box has widely adopted positioning cover and guide sleeve. The positioning hole of the positioning set is a round hole, and the hole of the guide set has an elliptical hole and a long square hole, which can compensate for the positioning hole spacing between the upper and lower sand boxes. Make the positioning pin not stuck.
We have more than 20 years experience supplying moulding box to foundries using SINTO, HWS, DISA, KW, GF, FH moulding lines.Meantimes, we have a lot of customers in France, Spain, India, Italy, UAE using our moulding box and pallet car.
| technology | Resin sand process |
| Application | Automatic moulding Line&Semi automatic moulding line |
| Machining | CNC Machining Center |
| Material | GG25/GGG50/welding steel |
| Pattern | Wooden Pattern |
| Sample Time | 45 Days |
| Dimension Inspection | FARO CMM |
| Material Inspection | Microscopic test |
| Flask Castings | Heat Treatment |
| Specification | As per customer’s requirement |
| Features | customization products |
| accessories | Pins,bushes, etc... |
| Certificates | chemical composition report, tensile strength and hardness report, annealing certificates |
RFQ:
1. Are you a manufacturer or a trading company?
We are engaged in casting machinery manufacturing professional supplier
2. How long can I get some samples?
The sample needs 45 days, and the mass production as per your order quantity.
3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What's your quality control device ?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
