Product Details
Place of Origin: Weifang, China
Brand Name: Kailong Machinery
Certification: ISO9001
Model Number: As requirement
Payment & Shipping Terms
Minimum Order Quantity: 10 Sets
Price: $800.00 - $10,000.00
Packaging Details: Exporting packages
Delivery Time: 40-60 days
Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram
Supply Ability: 30 sets/2 months
Description: |
Foundry Moulding Box |
Material: |
Ductile Iron,grey Iron Or Welding Steels |
Inspection: |
Faro CMM Machines |
Weights: |
As Per Drawings |
Sizes: |
As Customer' S Requirement |
Dimension: |
As Drawings Reuqirement |
Surface Treatment: |
Spray Painting |
Tensile Strength: |
As Per Material |
Description: |
Foundry Moulding Box |
Material: |
Ductile Iron,grey Iron Or Welding Steels |
Inspection: |
Faro CMM Machines |
Weights: |
As Per Drawings |
Sizes: |
As Customer' S Requirement |
Dimension: |
As Drawings Reuqirement |
Surface Treatment: |
Spray Painting |
Tensile Strength: |
As Per Material |

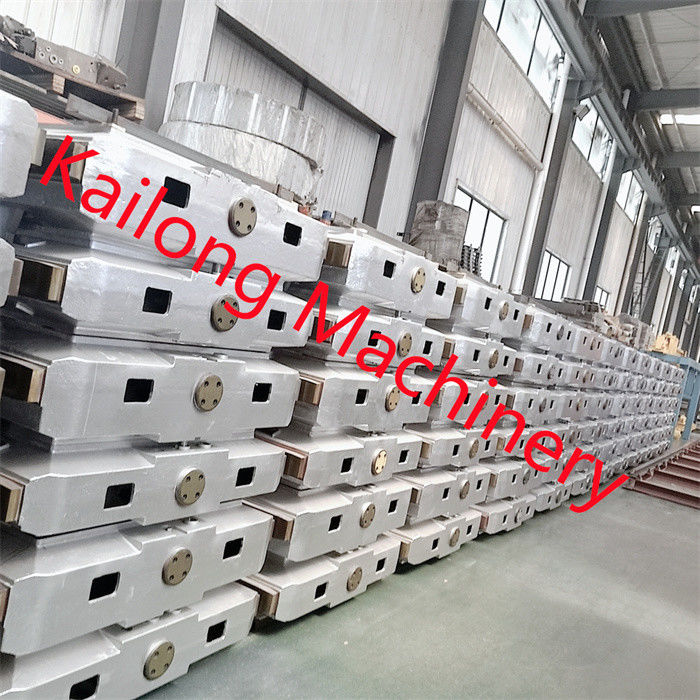

High Precision Casting Moulding box
Good Interchangeability Foundry Moulding Flask (Cope&Drag ) For Automatic Molding Line
Product Description:
Moulding box also named moulding flask, mold flask, sand flask, sand box, Flask assembly is equipped with slide path, positioning holes, limit block, closing pin, etc. In order to complete the sand box shape, transportation, positioning, turning, fit, pouring, sand landing and other functions.which is important tools for foundries using automatic or demi-automatic moulding line.
In order to prevent wear of positioning hole and prolong the service life of sand box, the positioning hole of casting sand box has widely adopted positioning cover and guide sleeve. The positioning hole of the positioning set is a round hole, and the hole of the guide set has an elliptical hole and a long square hole, which can compensate for the positioning hole spacing between the upper and lower sand boxes. Make the positioning pin not stuck.
Machined by advanced CNC machines and dimensions controlled by CMM, our products achieve higher accuracy and better interchangeability. The flasks are manufactured with ductile iron, higher grade gray iron, or steel welding, and they have higher rigidity and can bear higher pressure impact. In addition, we design and manufacture different sizes of customer drawing and technical specification.
We have more than 20 years experience supplying moulding box to foundries using SINTO, HWS, DISA, KW, GF, FH moulding lines.Meantimes, we have a lot of customers in France, Spain, India, Italy, UAE using our moulding box and pallet car.
| technology | Resin sand process |
| Machining machine | CNC Machining Center |
| Material | GG25/GGG50/welding steel |
| Pattern type | Wooden Pattern |
| Inspection tools | FARO CMM machines |
| Material Inspection | Microscopic test |
| Flask Castings Material | Equivalent country standard |
| Chemicial Composition | C, Si, Mn ,P, S, Cu |
| Specification | As per customer’s requirement |
| Bearings | Domestic Brand or SKF or Others |
| Certificates | chemical composition report, tensile strength and hardness report, annealing certificates |
We are engaged in casting machinery manufacturing professional supplier
2. How long can I get some samples?
The sample needs 45 days, and the mass production as per your order quantity.
3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.
4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.
5. What's your quality control device ?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
