High Accuracy Sand Casting Boxes Ductile Iron GGG50

Product Details

Place of Origin: Weifang, China

Brand Name: Kailong Machinery

Certification: ISO9001

Model Number: As requirement

Payment & Shipping Terms

Minimum Order Quantity: 10 Sets

Price: $800.00 - $10,000.00

Packaging Details: Exporting packages

Delivery Time: 40-60 days

Payment Terms: L/C, T/T, D/P, D/A, Western Union, MoneyGram

Supply Ability: 700 sets/ per month

Get Best Price
Highlight:

sand casting boxes GGG50

,

Accurate sand casting boxes

,

Ductile Iron moulding flask

Material:
GG25 /GGG50/WELDING STEEL
Technology:
Resin Sand Process
Machining:
CNC Machining Center
Pattern:
Wooden Pattern
Flask Castings:
Heat Treatment
Color:
As Customer's Requirement
Accessories:
Pin,bush, Pumber Etc
Surface Treatment:
Spray Painting
Material:
GG25 /GGG50/WELDING STEEL
Technology:
Resin Sand Process
Machining:
CNC Machining Center
Pattern:
Wooden Pattern
Flask Castings:
Heat Treatment
Color:
As Customer's Requirement
Accessories:
Pin,bush, Pumber Etc
Surface Treatment:
Spray Painting
High Accuracy Sand Casting Boxes Ductile Iron GGG50

High Precision Casting Moulding box

Sand Casting Flask Assembly Ductile Iron GGG50 For Automatic Molding Line



  Product Description:



Molding flask Material GG25, GGG50 or welding steel, also named moulding flask, mold flask, sand flask, sand box, which is important tools for foundries using automatic or demi-automatic moulding line.



It is the sand box used for the high pressure modeling machine. In the work process to bear a high pressure, should also have the following characteristics:



  • sandbox walls have higher stiffness and strength. To maintain the accuracy of the size of the sand shape.



2) Flask assembly is equipped with slide path, positioning holes, limit block, closing pin, etc. In order to complete the sand box shape, transportation, positioning, turning, fit, pouring, sand landing and other functions.



3) sand box is generally without belt. Easy for automatic modeling and sand fall.



  • The inside of the sand box wall is in a certain degree of concave shape. To ensure that the sand shape does not fall off and does not shift during the process of transportation, flipping and so on.



  • Thesand box has high positioning accuracy to ensure the size accuracy of the casting. Stress annealing shall be eliminated before the blank processing.

Machined by advanced CNC machines and dimensions controlled by CMM, our products achieve higher accuracy and better interchangeability. The flasks are manufactured with ductile iron, higher grade gray iron, or steel welding, and they have higher rigidity and can bear higher pressure impact. In addition, we design and manufacture different sizes of customer drawing and technical specification.



We have more than 20 years experience supplying  moulding box to foundries using SINTO, HWS, DISA, KW, GF, FH moulding lines.Meantimes, we have a lot of customers in France, Spain, India, Italy, UAE using our moulding box and pallet car.



technology Resin sand process
Application Automatic moulding Line
Machining CNC Machining Center
Material GG25/GGG50/welding steel
Pattern Type Wooden Pattern
Sample Time 45 Days
Dimension Inspection FARO CMM
Material Inspect Microscopic test
Flask Castings Heat Treatment
Specification As per customer’s requirement
Origin Weifang, China
Certificate chemical composition report, tensile strength and hardness report, annealing certificates

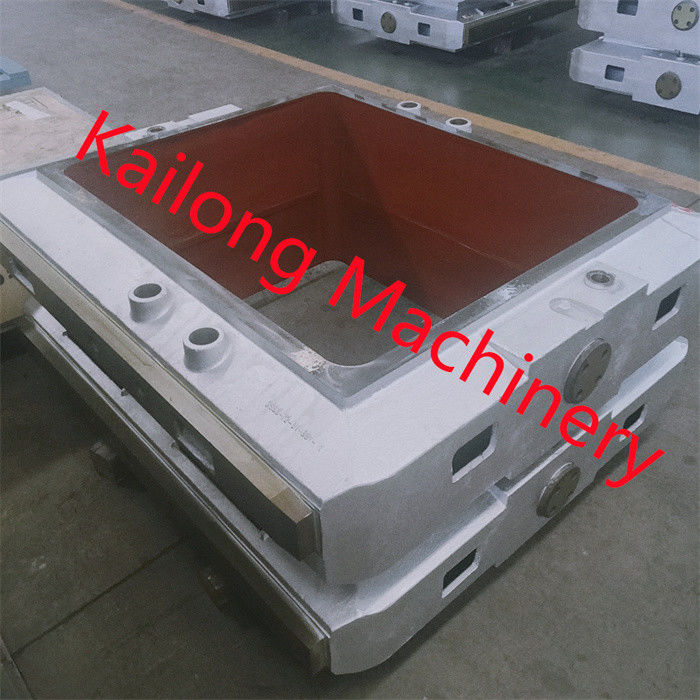

High Accuracy Sand Casting Boxes Ductile Iron GGG50 0


RFQ:



1. Are you a manufacturer or a trading company?
We are engaged in casting machinery manufacturing professional supplier


2. How long  can I get some samples?

The sample needs 45 days, and the mass production as per your order quantity.

3. Can you make casting according to our drawing?
Yes, we can make casting according to your drawing, 2D drawing, or 3D cad model. If the 3D cad model can be supplied, the development of the tooling can be more efficient. But without 3D, based on 2D drawing we can still make the samples properly approved.

4. Can you make casting based on our samples?
Yes, we can make measurement based on your samples to make drawings for tooling making.

5. What's your quality control device ?
We have spectrometer in house to monitor the chemical property, tensile test machine to control the mechanical property and UT Sonic as NDT checking method to control the casting detect under the surface of casting.
