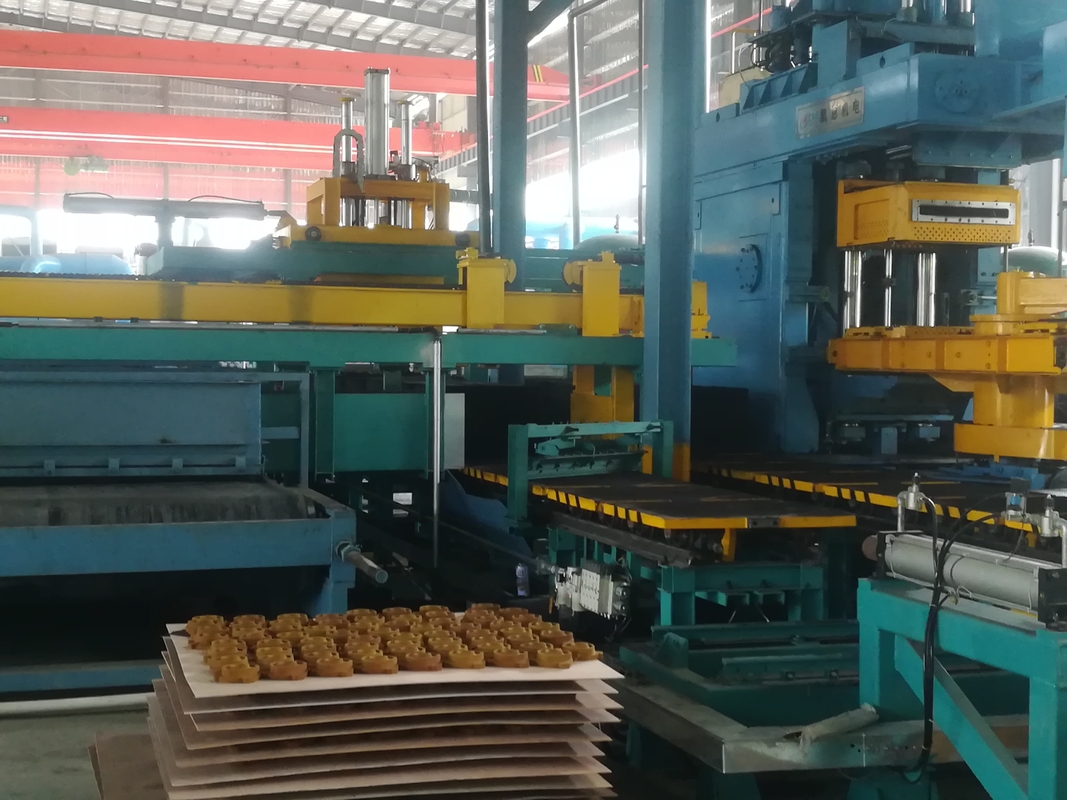

Green Sand Automatic Moulding Line Horizontal Parting Flaskless Shooting Squeezing

Description of Horizontal flaskless sand moulding machine

Automatic flaskless sand moulding machine is suitable for the production of automotive parts, such as cylinder head, flywheel shell, brake pliers, etc. Also suitable for the production of pipe, valve, shaft, cover plate parts, such as through, three links, bends, pipe clamps and so on. Is the most popular molding equipment in the foundry. The fully automatic horizontal flaskless parking molding Machine adopts PLC control, stable and reliable, can realize automatic operation, simple and convenient operation, small area, high productivity.-High ability for compaction sand, rigid and dense mould, suitable to manufacture of complex castings.
Fully automatic moulding machine is used to manufacture sand casting equipment. Its main functions are: filling sand, filling loose molding sand into the sand box; compacting the molding sand, compacting the loose molding sand in the sand box through different methods such as shock compaction, compaction, shock pressure, and injection pressure, so that the molding sand It has the necessary strength in the process of re-transportation and pouring; when the mold is released, different mechanisms are used to take out the shape from the compacted sand mold.

The full-automatic molding machine has a wide range of applications, suitable for small and medium-sized molding production such as valves, mechanical parts, auto parts, hydraulic fittings, pipe fittings, stove fittings, etc., and suitable for the production of ductile iron, gray iron and other materials.

Application of new technology of automatic horizontal flaskless moulding machine:

Touch control system: PLC intelligent automatic control, parts of Mitsubishi, Siemens, Korui and other international brands. The international brand, quality assurance

Control system: each part adopts a control box and decentralized operation; Set limit, operation, interlock, emergency stop so that the production operation more stable and reliable.

The large screen displays the operation process, fault indication, maintenance guide, and parameter setting. And through the network remote control, the realization of fault detection, convenient service.

Hydraulic system: famous brands such as hydraulic components and components, etc. The hydraulic system adopts proportion and data control technology to realize variable control.

-Good working condition and labour saving.
-Dimensional stability and better surface roughness.

-Mould plate with high rate of utilization.
-High efficiency of moulding.

Parameters of flaskless sand molding machine
( sand mold size can be customized as client's required)
